Hands-on! How to Solve MySQL Deep Pagination Problems

September 30, 2024 by Chat2DB

Preface

This article aims to deeply analyze the causes, impacts, and solutions of MySQL deep pagination issues, and to detail the underlying principles. The article will be divided into the following sections:

Background and Impact of Deep Pagination Issues
MySQL Index Structure and Query Execution Flow
Reasons for Performance Degradation in Deep Pagination
Optimization Strategies and Their Underlying Principles
Practical Case Analysis
Summary and Recommendations

Part One: Background and Impact of Deep Pagination Issues

What is Deep Pagination?

MySQL, as one of the most popular open-source relational databases, is widely used in applications of various scales. As the volume of data continues to grow, efficiently handling large amounts of data becomes a significant challenge in database management.

Pagination is a common data retrieval technique that allows users to browse and retrieve information from large datasets without loading all the data at once. This is crucial for improving user experience and reducing server load. However, when it comes to "deep pagination," i.e., querying pages far into a large dataset, MySQL's performance may significantly degrade.

Impact of Deep Pagination

Deep pagination issues can negatively affect application performance and user experience in several ways:

Increased Response Time: As the depth of pagination increases, the time required for queries also increases, leading to a decline in user experience.
Server Resource Consumption: Deep pagination queries consume more CPU and memory resources, potentially causing server performance bottlenecks.
Lock Contention and Data Inconsistency: In a concurrent environment, long-running queries can lead to lock contention and data inconsistency issues.

Issues in Real-World Scenarios

In real-world applications, deep pagination issues may arise in the following scenarios:

Large E-commerce Websites: Users browsing product lists may jump to deeper pages.
Social Media Platforms: Users viewing timelines or comments may load older content.
Data Analysis Reports: Generating reports with large datasets may require handling deep pagination queries.

Part Two: MySQL Index Structure and Query Execution Flow

Overview of MySQL Indexes

MySQL uses various types of indexes to improve query performance, with B+ tree indexes being the most common. Understanding the structure of these indexes is crucial for understanding deep pagination issues.

Characteristics of B+ Tree Indexes:

Node Storage: B+ trees are self-balancing tree structures where each node can have multiple child nodes. Non-leaf nodes store pointers to child nodes and separator values, while leaf nodes store actual data records or record pointers.
Sequential Access: Data in leaf nodes is stored in the order of the indexed column, making range queries very efficient.
Clustered and Non-clustered Indexes: Clustered indexes (primary key indexes) store row data directly in the leaf nodes, while non-clustered indexes (secondary indexes) store primary key values in the leaf nodes.

Query Execution Flow

When a query is executed, MySQL's query optimizer decides which index to use and generates a query execution plan. Here is the typical query execution flow:

Step 1: Query Parsing

MySQL parses the query statement to determine the operations to be performed and the tables involved.

Step 2: Query Optimization

The query optimizer analyzes different execution plans and selects the one with the lowest cost. The cost is calculated based on estimated row counts and index usage.

Step 3: Index Scan

If the query involves an index, MySQL starts scanning from the root node of the index, moving down until it finds the leaf nodes that satisfy the conditions.

Step 4: Table Lookup Operation

For non-clustered indexes, after finding the leaf nodes, MySQL needs to use the primary key values to go back to the clustered index to retrieve the full row data. This process is called a "table lookup."

Step 5: Result Set Construction

MySQL constructs the result set based on the query conditions. If a LIMIT clause is used, it skips rows that do not meet the conditions during the construction of the result set.

Issues with Deep Pagination Queries

In deep pagination queries, the offset value in the LIMIT clause is large, meaning MySQL needs to scan a large number of index nodes and row data, then discard most of the results. This process is not only inefficient but also leads to more pronounced performance degradation as the offset value increases. The reasons are as follows:

Index Scan Overhead: MySQL needs to scan more index nodes to locate the rows corresponding to the offset.
Table Lookup Overhead: For non-clustered indexes, a table lookup operation is required for each matching index record, which is particularly expensive with large offset values.
Result Set Construction Overhead: Even after finding the required data, MySQL still needs to process and discard the preceding offset rows.

Case Analysis

Assume we have a users table with millions of records, and we need to query the 100001st to 100010th records. Here is a simple deep pagination query:

SELECT
  *
FROM
  users
ORDER BY
  id
LIMIT
  100000, 10;

In this query, MySQL needs to perform the following operations:

Scan the users table's index (assuming it's a clustered index) to find the record with ID 100001.
Scan and discard the first 100000 records.
Return the 100001st to 100010th records.

This process is very inefficient, especially when the index is not a clustered index, as each matching index record requires a table lookup operation.

Part Three: Reasons for Performance Degradation in Deep Pagination

1. Limitations of Index Scans

In deep pagination queries, one of the main reasons for performance degradation is the limitations of index scans. Here are some key points:

Full Index Scan

When the offset value in the LIMIT clause is large, MySQL may need to perform a full index scan to find the records that meet the conditions. This means scanning from the root node of the index all the way to the leaf nodes, regardless of whether these nodes contain the target data.

Index Skippability

Even with an index scan, MySQL cannot directly jump to a specific offset position. It must sequentially scan from the start of the index until it reaches the desired position. This sequential scanning process is time-consuming.

Table Lookup Overhead

For non-clustered indexes, after finding the matching index records, MySQL needs to perform a table lookup to get the full row data. In deep pagination queries, due to the large offset value, this results in a large number of table lookups, increasing I/O overhead.

2. Data Access Patterns

Deep pagination queries typically involve the following data access patterns, which can lead to performance issues:

Random I/O

Since index scans usually involve random I/O, which is much slower than sequential I/O. This is especially true on mechanical hard drives, where random I/O latency can significantly impact query performance.

Inefficient Caching

Deep pagination queries often do not benefit from MySQL's query cache, as the cache is based on exact matches of the query string. Additionally, due to the large amount of data, cached data may be quickly evicted.

3. Impact of Locks and Transactions

In a concurrent environment, deep pagination queries can cause the following issues:

Long Transactions and Lock Contention

Deep pagination queries may take a long time to execute, increasing the duration of transactions. Long transactions can lead to lock contention, affecting the performance of other concurrent operations.

Deadlock Risk

In complex query operations, deep pagination queries can increase the risk of deadlocks, especially when involving multiple tables and indexes.

Example Analysis

Using the previous users table as an example, assume we are using a non-clustered index to perform a deep pagination query. Here is a specific performance issue analysis:

SELECT
  *
FROM
  users
WHERE
  username LIKE 'A%'
ORDER BY
  id
LIMIT
  100000, 10;

In this query, MySQL first finds all records with usernames starting with 'A' in the username index, sorts these records, and performs a table lookup to get the complete user information. When the offset value is large, this process becomes very inefficient because:

MySQL needs to scan a large number of index records.
For each index record, MySQL needs to perform a table lookup.
The sorting operation itself consumes a lot of CPU resources.

Summary

The reasons for performance degradation in deep pagination are multifaceted, including the limitations of index scans, data access patterns, and the impact of locks and transactions. These factors collectively contribute to low query efficiency, especially when handling large datasets.

Part Four: Optimization Strategies and Their Underlying Principles

1. Subquery Optimization Strategy

The core idea of the subquery optimization strategy is to reduce table lookup operations. By finding the starting ID that meets the conditions in the subquery, the main query can directly retrieve data from that ID.

Underlying Principle:

The subquery is executed on the secondary index, quickly locating the starting point that meets the conditions.
The main query retrieves data directly from the primary key index starting from this point, avoiding multiple table lookups from the secondary index to the primary key index.

Example:

SELECT
  *
FROM
  users
WHERE
  id = (
    SELECT
      id
    FROM
      users
    WHERE
      username LIKE 'A%'
    ORDER BY
      id
    LIMIT
      100000, 1
  )
LIMIT
  10;

In this example, the subquery first finds the record with an ID greater than or equal to a certain value, and the main query retrieves from this ID, reducing unnecessary table lookups.

2. INNER JOIN Delayed Join Strategy

The delayed join strategy involves first obtaining the set of IDs that meet the conditions, then performing a JOIN operation with the original table to get the complete data.

Underlying Principle:

Quickly find the set of IDs that meet the conditions on the secondary index.
Use INNER JOIN to retrieve the data corresponding to these IDs on the primary key index, reducing the number of table lookups.

Example:

SELECT
  u.*
FROM
  users u
  INNER JOIN (
    SELECT
      id
    FROM
      users
    WHERE
      username LIKE 'A%'
    ORDER BY
      id
    LIMIT
      100000, 10
  ) AS sub ON u.id = sub.id;

In this example, the temporary table sub generated by the subquery contains the set of IDs to be retrieved, and then it is joined with the users table using INNER JOIN to directly access the primary key index.

3. Tag Record Method Strategy

The tag record method records the last ID of the previous query, and the next query starts from that ID.

Underlying Principle:

Utilize the characteristics of ordered indexes to start from the last ID of the previous query, avoiding a full scan from the beginning.
Suitable for fields with continuous or sortable values, such as auto-incrementing primary keys or timestamps.

Example:

SELECT
  *
FROM
  users
WHERE
  id > last_id
ORDER BY
  id
LIMIT
  10;

Here, last_id is the last ID of the previous query. By using this method, you can directly skip over the data that has already been queried.

4. Using `BETWEEN…AND…` Strategy

Strategy Description: Use BETWEEN…AND… instead of LIMIT to directly specify the query range.

Underlying Principle:

BETWEEN…AND… allows MySQL to directly locate the start and end points of the query.
Reduces the number of scanned rows, improving query efficiency.

Example:

SELECT
  *
FROM
  users
WHERE
  id BETWEEN start_id AND end_id;

In this example, start_id and end_id are pre-calculated ID ranges, and MySQL can directly retrieve data within this range.

Summary

The common goal of these optimization strategies is to reduce unnecessary index scans and table lookups, thereby improving query efficiency. Each strategy has its own applicable scenarios and limitations, so in practice, you need to choose and adjust based on the specific situation.

Part Five: Practical Case Analysis

Assume we have a large e-commerce platform with an orders table that stores order information. This table contains millions of records, and the data volume continues to grow with business development. We frequently need to query orders within a specific date range and display them with pagination.

Original Query Issue

The following is a common deep pagination query to fetch orders within a specific date range:

SELECT
  *
FROM
  orders
WHERE
  order_date BETWEEN '2023-01-01' AND '2023-01-31'
ORDER BY
  order_id
LIMIT
  100000, 10;

The problem with this query is that as the offset value in the LIMIT clause increases, the query performance degrades significantly. This is because MySQL needs to scan a large number of rows to find the records that meet the conditions.

Application of Optimization Strategies

Here are the optimization strategies applied to the above query:

Subquery Optimization

SELECT
  *
FROM
  orders
WHERE
  order_id = (
    SELECT
      order_id
    FROM
      orders
    WHERE
      order_date BETWEEN '2023-01-01' AND '2023-01-31'
    ORDER BY
      order_id
    LIMIT
      100000, 1
  )
LIMIT
  10;

In this optimization, the subquery first finds the starting order_id, and the main query retrieves from this order_id, reducing table lookups.

INNER JOIN Delayed Join

SELECT
  o.*
FROM
  orders o
  INNER JOIN (
    SELECT
      order_id
    FROM
      orders
    WHERE
      order_date BETWEEN '2023-01-01' AND '2023-01-31'
    ORDER BY
      order_id
    LIMIT
      100000, 10
  ) AS sub ON o.order_id = sub.order_id;

Here, the subquery creates a temporary table containing the required order_ids, and then it is joined with the orders table using INNER JOIN to directly access the primary key index.

Tag Record Method

Assuming we already know the last order_id of the previous query is 200000, we can use the following query:

SELECT
  *
FROM
  orders
WHERE
  order_id > 200000
  AND order_date BETWEEN '2023-01-01' AND '2023-01-31'
ORDER BY
  order_id
LIMIT
  10;

This method allows us to start directly from the last order_id of the previous query, avoiding a full scan from the beginning.

Using BETWEEN…AND…

If we know the ID range of the query, we can directly use:

SELECT
  *
FROM
  orders
WHERE
  order_id BETWEEN 100001 AND 100010
  AND order_date BETWEEN '2023-01-01' AND '2023-01-31'
ORDER BY
  order_id;

This query directly specifies the order_id range, reducing the number of scanned rows.

Optimization Effects

By applying the above optimization strategies, we can significantly improve query performance. Some possible optimization effects include:

Reduced Query Time: By reducing table lookups and index scans, query time can be greatly reduced.
Lower Server Load: Reducing unnecessary I/O operations and CPU calculations, lowering server load.
Improved User Experience: Quickly responding to user query requests, enhancing user experience.

Summary

Through practical case analysis, we can see that optimizing deep pagination issues is not just about technical adjustments; it is an ongoing process that requires continuous optimization and adjustment based on changes in data and business.

Part Six: Summary and Recommendations

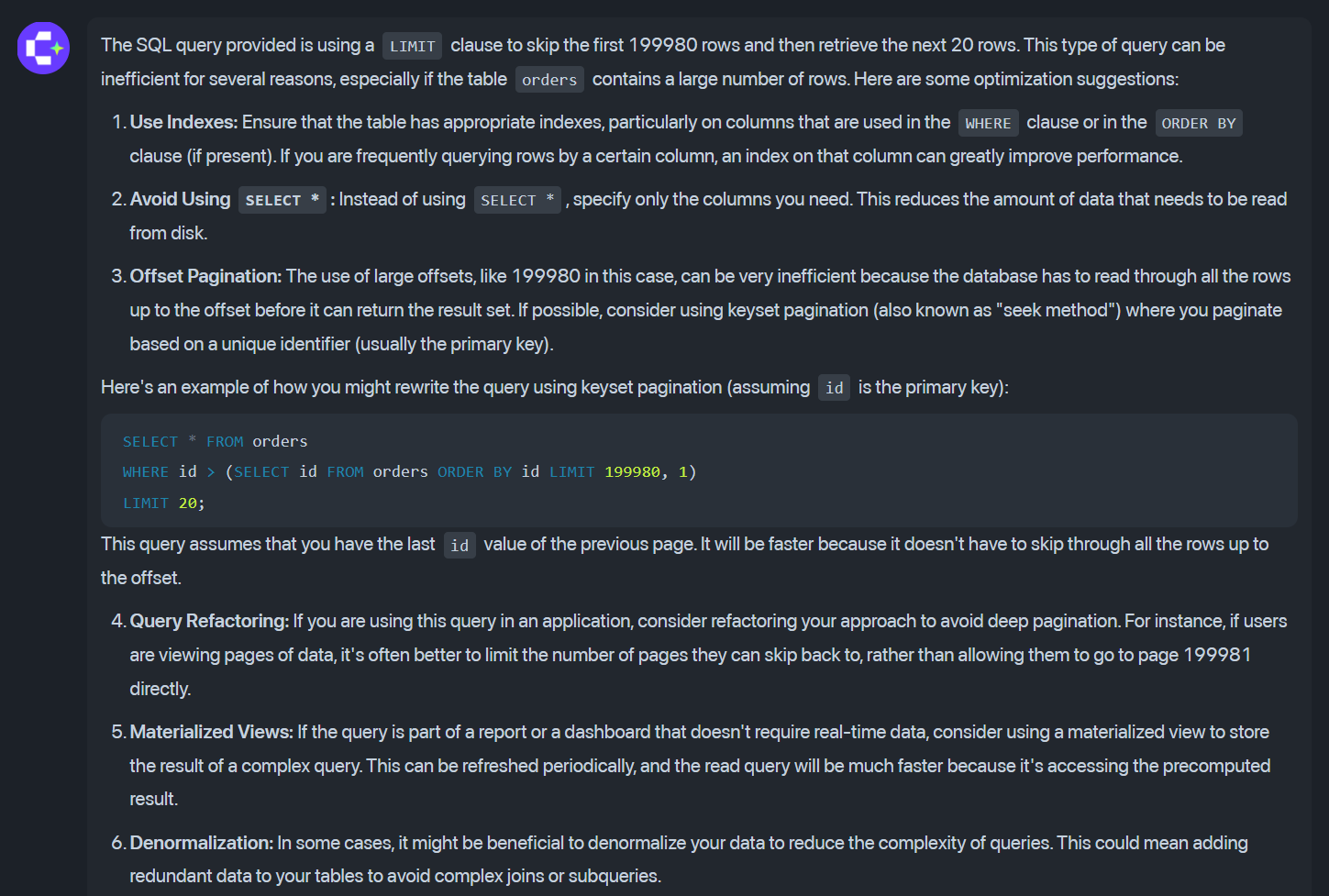

Finally, if you encounter similar database issues, you can try Chat2DB. This is an open-source and free database client tool. You can ask it any database-related questions in natural language, and it will provide you with the best solutions. Let's see how Chat2DB would solve the same problem.
